Case Study: FENN Swager, Sound Enclosure & Feeder

FENN Solutions

Repeat Customer Purchases Swager, Sound Enclosure & Feeder

6F-Sized Swager Paired with a Hydraulic Feeder & Sound Enclosure

Objectives & Background:

• A repeat and long-standing customer approached FENN looking for a solution to increase production capabilities & efficiencies with their swaging operation.
• The customer required safety equipment to be implemented into their swaging process.
• Having multiple FENN machines, the customer chose to work with FENN to improve their swaging process because they are comfortable operating & maintaining FENN equipment.

FENN’s Solution:

• Due to the size of the material being swaged, FENN recommended a 6F-sized swager to accommodate the customer’s production requirements.
• As with all swager purchases, FENN recommended a sound enclosure to reduce the noise level of the swaging operation to below OSHA’s permissible exposure limit for hearing protection.
• With all swager proposals, FENN recommends a feeding system accompany the swager. For this customer’s 6F swager FENN proposed a 40H feeding system to improve safety & efficiency of material handling during the swaging process.

Value to Customer:

• The customer received a swaging solution custom to their production requirements.
  • Working with FENN during every step of the process, enabled the customer to customize the sound enclosure to their specifications.

• The 6F rotary swager consists of a 4-die configuration with the capacity of swaging solid material up to 2¼” and tubing up to 4½”
• FENN’s feeder table design incorporates a rigid base with a hydraulically powered, accurate, sliding top for precise applications.
  • The unit is ideal for high accuracy products and reduction applications.

• Both the 6F-swager and 40H feeder are controlled with a single operator station.
  • Start cycle, stop cycle, jog forward/reverse, E-stop & more can be controlled from the operator station.

• Upon delivery, the customer received peace of mind knowing FENN machinery comes standard with a 1-year warranty and a lifetime of remote support capabilities.

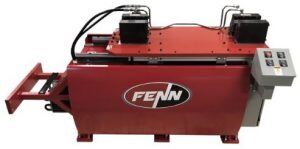

Example of a FENN 40H Feeder & a 6F Swager:
